Cerium Boride, also called Cerium Hexaboride or CeB6, is a refractory ceramic material. Nextgen Advanced Materials supplies Cerium Hexaboride sheets with high quality and fast delivery and customized products area also available

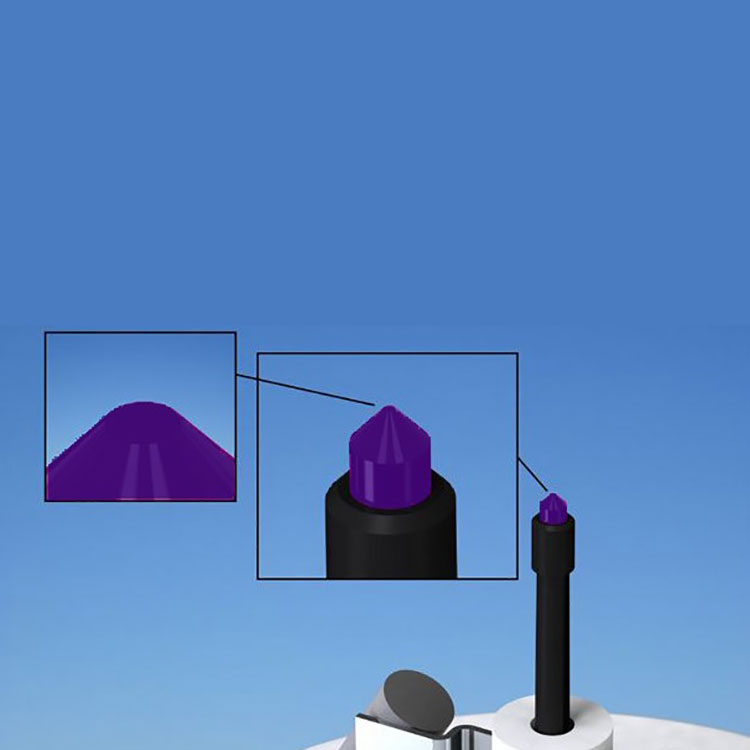

As the professional manufacture, we would like to provide you high quality Nextgen Cerium Hexaboride Sheet. And we will offer you the best after-sale service and timely delivery. Cerium Boride, also called Cerium Hexaboride or CeB6, is a refractory ceramic material. The principal use of cerium hexaboride is a coating of hot cathodes, or hot cathodes made of cerium hexaboride crystals. It usually operates at temperature of 1450 °C.
Cerium hexaboride, like lanthanum hexaboride, slowly evaporates during the cathode operation. In conditions where CeB6 cathodes are operated under 1850 K, CeB6 should maintain its optimum shape longer and therefore last longer. While the process is about 30% slower than with lanthanum boride, the cerium boride deposits are reported to be more difficult to remove.
|
Parameter |
Units |
LaB6 |
CeB6 |
|
Stoichiometry |
N/A |
~6 |
|
|
Metal Impurities |
ppm by wt. |
＜30 |
|
|
Density |
g/cm3 |
4.72 |
4.80 |
|
Coefficient of Thermal Expansion |
α x 106 |
5.6 |
6.2 |
|
Electrical Resistivity |
µΩ-cm |
~50 |
~65 |
|
Effective Work Function (100) at 1800 K |
eV |
2.70 |
2.65 |
|
Spectral Emissivity at 0.65 microns |
N/A |
0.765 |
0.779 |
|
Evaporation rate at 1800 K (UHV) |
g/cm2/s |
2.2 x 10-9 |
1.6 x 10-9 |
|
Orientation limit for specific orientation |
degrees |
＜2 |
|
|
Pyrolitic block mount resistance @ 1800 K |
Ohms |
1.45 |
|
