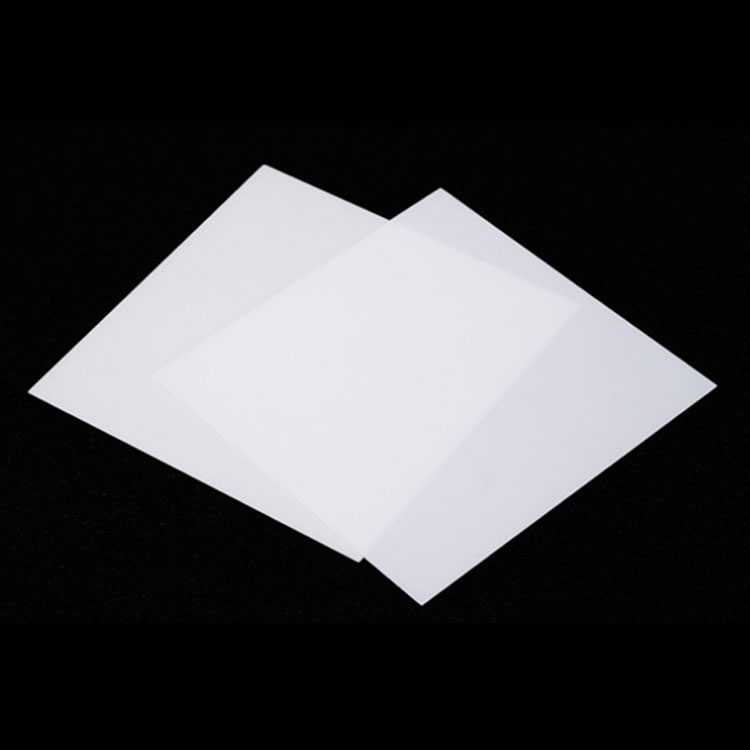

Aluminum Nitride Substrate

Nextgen Advanced Materials supplies high-quality and high-purity Aluminum Nitride Substrate with fast delivery. Customization is available.

Send Inquiry    PDF DownLoad

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Nextgen Aluminum Nitride Substrate. Aluminum nitride substrate is made of  high purity aluminum nitride ceramics. The AlN is an ideal choice for heat dissipation substrate in electrical applications. It has high mechanical hardness, high thermal conductivity, similar thermal expansion coefficient with Silicon, excellent electrical resistivity and good chemical stability. Besides, Aluminium Nitride is non-toxic.


Property of Aluminum Nitride

Item Unit Parameter
Thermal Conductivity 30℃ W/m.k ≥170
Density g/cm3 3.335
Copper bonding capacity N/cm2 ≥20N
Flexural strength MPa 382.7
Dielectric constant 1MHz 8.56
Thermal conductivity of copper W/m.K 385
Rockwell hardness HRA 80-90
Surface roughness μm 0.3~0.5
Warping degree length‰ ≤2‰
